一．概述该电动操作机构配置于新一代智能型DW45开关作为驱动储能用；此机构采用三级圆柱齿轮及一级行星齿轮减速，减速比为1256：1。二.外形安装尺寸<img src="https://img-i-album.toocle.com/view/2022/01/13/1b/61df868f2f21b.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/13/fd/61df868f41afd.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/13/bf/61df868f478bf.png" style="max-width: 100%;"/>三.技术数据<img src="https://img-i-album.toocle.com/view/2022/01/13/44/61df86a65ac44.png" style="max-width:100%;"/>

一．概述DW45系列框架断路器主要配套附件有分励脱扣器、闭合电磁铁、助吸式欠电压脱扣器、助吸式欠电压延时脱扣器、自吸式欠电压脱扣器等附件。各附件分别具有远距离控制断路器的断开、闭合和增加断路器的欠电压瞬时或欠电压延时保护功能。二．型号及含义<img src="https://img-i-album.toocle.com/view/2022/01/13/fa/61df87d13e1fa.png" style="max-width:100%;"/>三．主要技术参数1、分励脱扣器、闭合电磁铁外形和技术相同，额定电压可靠动作。(其它参数见下表)<img src="https://img-i-album.toocle.com/view/2022/01/13/34/61df87d4b2134.png" style="max-width:100%;"/>2、延时欠电压脱扣器<img src="https://img-i-album.toocle.com/view/2022/01/13/13/61df87e795613.png" style="max-width:100%;"/>

后连接(在基极与底板之间必须要装绝缘隔板)<img src="https://img-i-album.toocle.com/view/2022/01/13/eb/61df8ee935aeb.png" style="max-width:100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/cf/61df8ee9464cf.png" style="max-width: 100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/16/61df8ee95fb16.png" style="max-width: 100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/98/61df8f1905498.png" style="max-width:100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/3c/61df8f190e13c.png" style="max-width: 100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/e0/61df8f191eae0.png" style="max-width: 100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/e1/61df8f19267e1.png" style="max-width: 100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/fa/61df8f5993dfa.png" style="max-width:100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/69/61df8f59c9969.png" style="max-width: 100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/0b/61df8f59d260b.png" style="max-width: 100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/27/61df8f7c85c27.png" style="max-width:100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/46/61df8f7c92746.png" style="max-width: 100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/e8/61df8f7ca30e8.png" style="max-width: 100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/0e/61df8f7cb790e.png" style="max-width: 100%;" width="30%"/>NS、NSX、CVS插入式外形安装尺寸见表:<img src="https://img-i-album.toocle.com/view/2022/01/13/c4/61df8fac213c4.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/13/12/61df8fac42712.png" style="max-width: 100%;"/>注:N表示板前接线方式；M表示板后接线方式；

<img src="https://img-i-album.toocle.com/view/2022/01/13/9e/61df93291289e.png" style="max-width:100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/24/61df93291e424.png" style="max-width: 100%;" width="30%"/>屏前开孔<img src="https://img-i-album.toocle.com/view/2022/01/13/f1/61df9343eb6f1.png" style="max-width:100%;" width="30%"/><img src="https://img-i-album.toocle.com/view/2022/01/13/f1/61df934408df1.png" style="max-width: 100%;" width="30%"/>NS、NSX、CVS手动操作机构安装尺寸见表<img src="https://img-i-album.toocle.com/view/2022/01/13/f2/61df93632fbf2.png" style="max-width:100%;"/>

一.附注板后接线柱用于塑壳断路器为板后接线装置:CM1、NM1、CDM1、ABB(HSM1)、TM30(NF30)、TOTG、NS板后接线系列。<img src="https://img-i-album.toocle.com/view/2022/01/14/82/61e0ed2048082.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/14/43/61e0ed205d843.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/14/ea/61e0ed2075eea.png" style="max-width: 100%;"/>CM1、NMI、CDM1、RMMI板后接线外形及安装尺寸见表:<img src="https://img-i-album.toocle.com/view/2022/01/14/81/61e0ed2c26081.png" style="max-width:100%;"/>

一.附注板后接线柱用于塑壳断路器为板后接线装置:CM1、NM1、CDM1、ABB(HSM1)、TM30(NF30)、TOTG、NS板后接线系列。<img src="https://img-i-album.toocle.com/view/2022/01/14/82/61e0ed2048082.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/14/43/61e0ed205d843.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/14/ea/61e0ed2075eea.png" style="max-width: 100%;"/>CM1、NMI、CDM1、RMMI板后接线外形及安装尺寸见表:<img src="https://img-i-album.toocle.com/view/2022/01/14/81/61e0ed2c26081.png" style="max-width:100%;"/>

一.附注板后接线柱用于塑壳断路器为板后接线装置:CM1、NM1、CDM1、ABB(HSM1)、TM30(NF30)、TOTG、NS板后接线系列。<img src="https://img-i-album.toocle.com/view/2022/01/14/b3/61e0ed6de76b3.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/14/1b/61e0ed6e1381b.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/14/80/61e0ed6e22280.png" style="max-width: 100%;"/>CM1、NMI、CDM1、RMMI板后接线外形及安装尺寸见表:<img src="https://img-i-album.toocle.com/view/2022/01/14/09/61e0ed6d4ec09.png" style="max-width:100%;"/>

一.附注板后接线柱用于塑壳断路器为板后接线装置:CM1、NM1、CDM1、ABB(HSM1)、TM30(NF30)、TOTG、NS板后接线系列。<img src="https://img-i-album.toocle.com/view/2022/01/14/58/61e1021c62058.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/14/3d/61e1021c8433d.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/14/43/61e1021c9ba43.png" style="max-width: 100%;"/>CM1、NMI、CDM1、RMMI板后接线外形及安装尺寸见表:<img src="https://img-i-album.toocle.com/view/2022/01/14/27/61e102301c027.png" style="max-width:100%;"/>

一.附注板后接线柱用于塑壳断路器为板后接线装置:CM1、NM1、CDM1、ABB(HSM1)、TM30(NF30)、TOTG、NS板后接线系列。<img src="https://img-i-album.toocle.com/view/2022/01/14/c0/61e103e8889c0.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/14/d2/61e103e89d1d2.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/14/99/61e103e8ba699.png" style="max-width: 100%;"/>CM1、NMI、CDM1、RMMI板后接线外形及安装尺寸见表:<img src="https://img-i-album.toocle.com/view/2022/01/14/61/61e104244fe61.png" style="max-width:100%;"/>

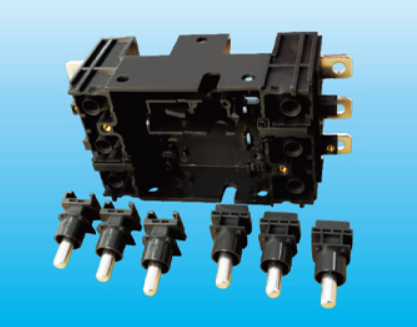

1.用途：国内外各系列塑壳断路器插入式接线装置，增加了断路器与主电路的隔离功能，其特点是安装方便，接触可靠，插拔力小、温升低。2.型号及含义<img src="https://img-i-album.toocle.com/view/2022/01/19/11/61e773125a411.png" style="max-width:100%;"/>3.外形及安装尺寸<img src="https://img-i-album.toocle.com/view/2022/01/19/73/61e7732e08473.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/f5/61e7732e13ff5.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/ba/61e7732e297ba.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/d5/61e773de26ad5.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/47/61e773eee4047.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/e4/61e77415ba9e4.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/29/61e77415cc329.png" style="max-width: 100%;"/>

1.用途：国内外各系列塑壳断路器插入式接线装置，增加了断路器与主电路的隔离功能，其特点是安装方便，接触可靠，插拔力小、温升低。2.型号及含义<img src="https://img-i-album.toocle.com/view/2022/01/19/06/61e7747812906.png" style="max-width:100%;"/>3.外形及安装尺寸<img src="https://img-i-album.toocle.com/view/2022/01/19/fc/61e774938a1fc.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/e1/61e77493a47e1.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/06/61e77493b9006.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/3a/61e774b3d7c3a.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/42/61e774b3e7642.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/a4/61e774cd489a4.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/b9/61e774cd64eb9.png" style="max-width: 100%;"/>

1.用途：国内外各系列塑壳断路器插入式接线装置，增加了断路器与主电路的隔离功能，其特点是安装方便，接触可靠，插拔力小、温升低。2.型号及含义<img src="https://img-i-album.toocle.com/view/2022/01/19/e8/61e7751b65be8.png" style="max-width:100%;"/>3.外形及安装尺寸<img src="https://img-i-album.toocle.com/view/2022/01/19/8d/61e7753ad108d.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/34/61e7753ae1a34.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/78/61e7753af3378.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/86/61e775534c986.png" style="max-width:100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/02/61e7755372b02.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/c1/61e77553a76c1.png" style="max-width: 100%;"/><img src="https://img-i-album.toocle.com/view/2022/01/19/c8/61e77553c6ac8.png" style="max-width: 100%;"/>
